Torp TM 40 Lightbee Motor

1.059,00 €

inkl. 20 % MwSt.

50KW in deiner Surron Lightbee? => Torp TM40 kaufen!

Kategorien:
Kategorie: Schlagwörter: , , , , ,

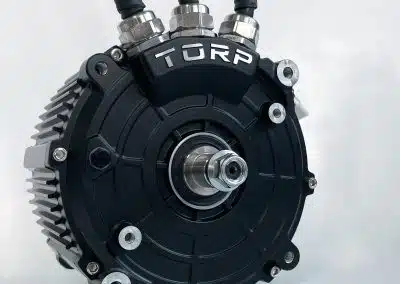

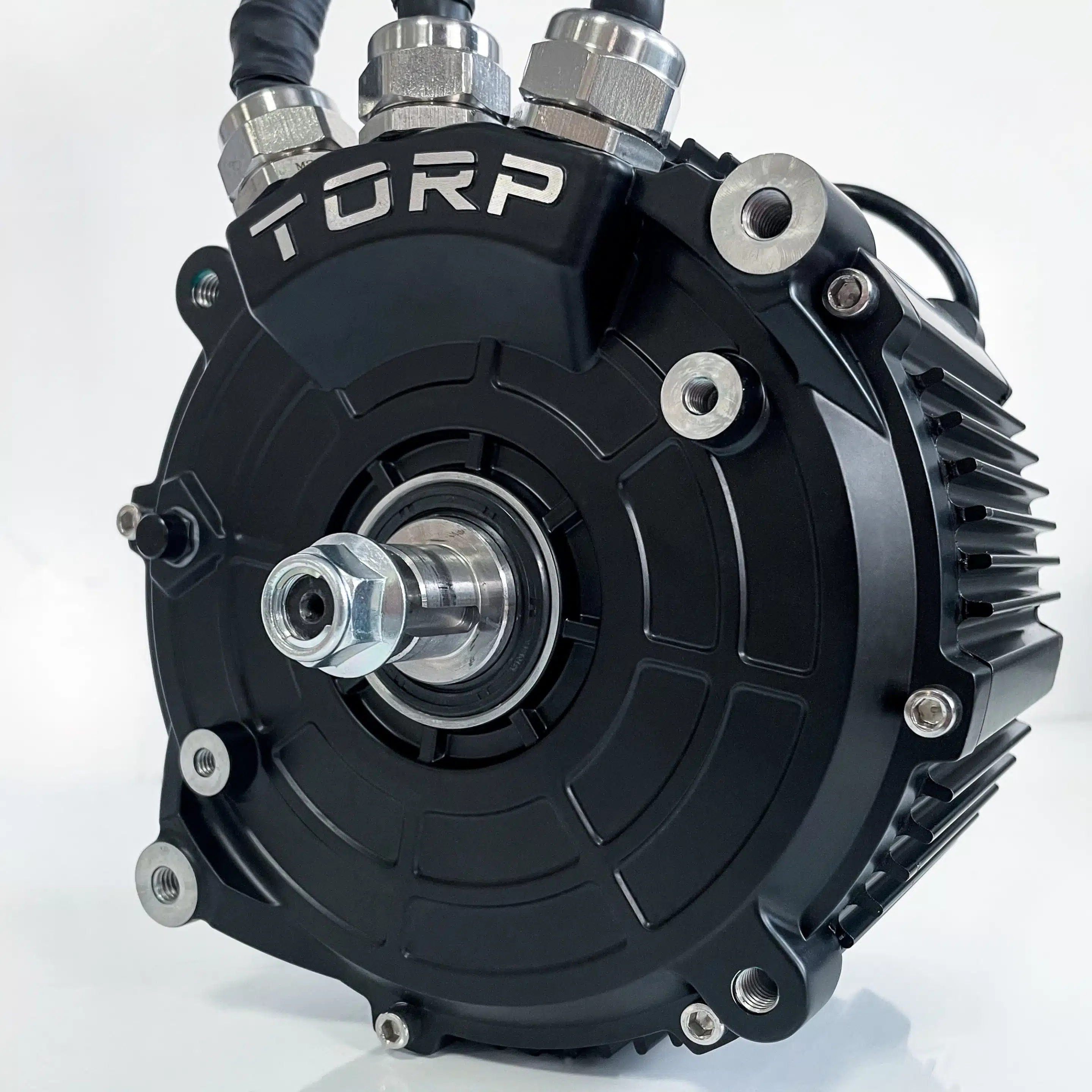

Torp motor tm40 Surron Lightbee.

The most powerful motor for SurRon Light Bee on the market!
POWERFUL UP TO 50KW
WIDE MAGNETS 65MM

EXPERIENCE THE LIMITLESS POWER OF YOUR LIGHT BEE.

The Torp TM40 is a game-changer when it comes to SurRon Light Bee. Our engineers have maximized the power output of the SurRon Light Bee by designing a motor with 65mm-wide magnets. This innovation delivers peak performance within a small, lightweight frame. Engineered for the sole purpose of pushing both you and your bike to the absolute limits, this powerhouse is built for those who crave power and dominance. Lead the pack at drag races, shatter records, and impress your friends with the most powerful SurRon Light Bee on the track!
Developed for maximum power, due to its thick wires, wide magnets, and the lowest electrical resistance!
The ultimate upgrade for SurRon Light Bee with mounting options for other vehicles.
Encoder or Hall: wide range of compatibility with superb precision with Torp controllers even at high speeds.
Developed in the EU: superior materials for lasting performance.
TM40 comes in two versions:

TM40 & TM40PRO

Both are engineered to break acceleration records and dominate the drag strip, while each model is expertly tuned to your unique riding style.

TM40: off-road beast

Do you enjoy exploring long, demanding trails? TM40 is the motor for you as it has both endurance and power to climb steep terrain. With 93 Nm of instant torque, there is no obstacle it can not tackle. Need a boost in top-end speed? Simply pair the motor with a smaller sprocket.

TM40PRO – high-speed master

Packing 50kW of power, the TM40PRO is built for those who crave ultimate dominance on the road—right from the first twist of the throttle to crossing the finish line. Boasting a 15% higher top speed than the TM40, this powerhouse guarantees you’ll surge past the competition and secure first place.
42 kW of power
93 Nm of torque
50 kW of power
86 Nm of torque
Important: Both TM40 and TM40PRO are so powerful, that for safe and optimal use, a full upgrade of the SurRon Light Bee is required (from upgraded chain, sprocket, belt, and brakes all the way to the very powerful battery).
CLICK HERE FOR USER MANUAL

SPECIFICATIONS.

TM40

  • Peak Power: 42 kW
  • Continuous Power: 17 kW
  • Max Phase current: 1000 A
  • Max Torque: 93 Nm
  • Torque 500 A: 52 Nm
  • KV rating: 84 RPM/V
  • Motor Resistance: 2.7 mΩ
  • Phase cross-section: 35 mm²
  • Magnet length: 65 mm
  • Weight: 12 kg
  • Motor Size: 115×165 mm
  • Max RPM: 10 000 RPM

TM40PRO

  • Peak Power: 50 kW
  • Continuous Power: 19 kW
  • Max Phase current: 1100 A
  • Max Torque: 86 Nm
  • Torque 500 A: 48 Nm
  • KV rating: 97 RPM/V
  • Motor Resistance: 2.4 mΩ
  • Phase cross-section: 35 mm²
  • Magnet length: 65 mm
  • Weight: 12 kg
  • Motor Size: 115×165 mm
  • Max RPM: 11 000 RPM
  • Motor type: IPM
  • Position sensor: Encoder
  • Encoder points: 1024 (4096)
  • Max magnet temp.: 150 °C
  • Temp. sensor: PT1000
  • Efficiency: up to 95%
  • Protection class: IP67*
  • Terminal lug size: M6 35 mm²
  • Installation: Mid
  • Number of pole pairs: 5
  • Cooling method: Air
  • Warranty: 2 year
*Our products have an IP67 rating, achieved by testing in distilled water under laboratory conditions. Please note that this rating does not imply suitability for continuous underwater use as it may result in damage. Additionally, the connectors on the product are not waterproof and must be kept dry to ensure proper functionality and safety. The warranty does not cover malfunction or damage arising from the use of the products in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.
