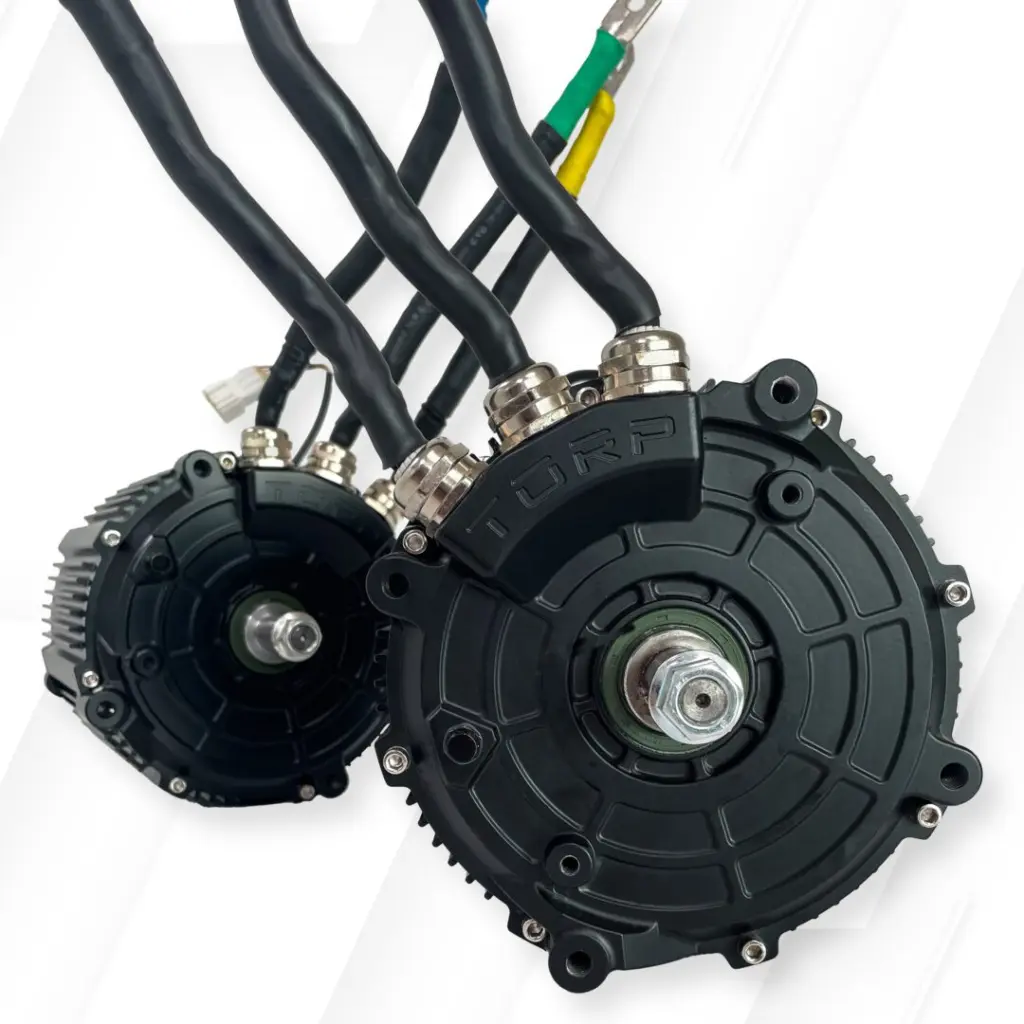

Torp TM 50 Motor Ultra Bee

1.198,80

inkl. 20 % MwSt.

Surron Ultra Bee Motor 52KW Peak Power.

Jetzt lagernd!

Torp TM 50 PRO
  • TM50.

    Peak Power: 52 kW Continuous Power: 22 kW Max Phase current: 1100 A Max Torque: 98.5 Nm Torque 500 A: 52.5 Nm KV rating: 85 RPM/V Motor Resistance: 2.3 mΩ Phase cross-section: 36 mm² Magnet length: 75 mm Weight: 13,7 kg Motor Size: 170×198 mm
  • Motor type: IPM Max RPM: 10 000 RPM Position sensor: Encoder Encoder points: 1024 (4096) Max magnet temp.: 150 °C Temp. sensor: PT1000 Efficiency: up to 95% Protection class: IP67 Terminal lug size: M6 50 mm² Installation: Mid Number of pole pairs: 5 Cooling method: Air
Torp TM 50 PRO
  • TM50.

    Peak Power: 52 kW Continuous Power: 22 kW Max Phase current: 1100 A Max Torque: 98.5 Nm Torque 500 A: 52.5 Nm KV rating: 85 RPM/V Motor Resistance: 2.3 mΩ Phase cross-section: 36 mm² Magnet length: 75 mm Weight: 13,7 kg Motor Size: 170×198 mm
  • Motor type: IPM Max RPM: 10 000 RPM Position sensor: Encoder Encoder points: 1024 (4096) Max magnet temp.: 150 °C Temp. sensor: PT1000 Efficiency: up to 95% Protection class: IP67 Terminal lug size: M6 50 mm² Installation: Mid Number of pole pairs: 5 Cooling method: Air
